MATERIAL & ASSEMBLY

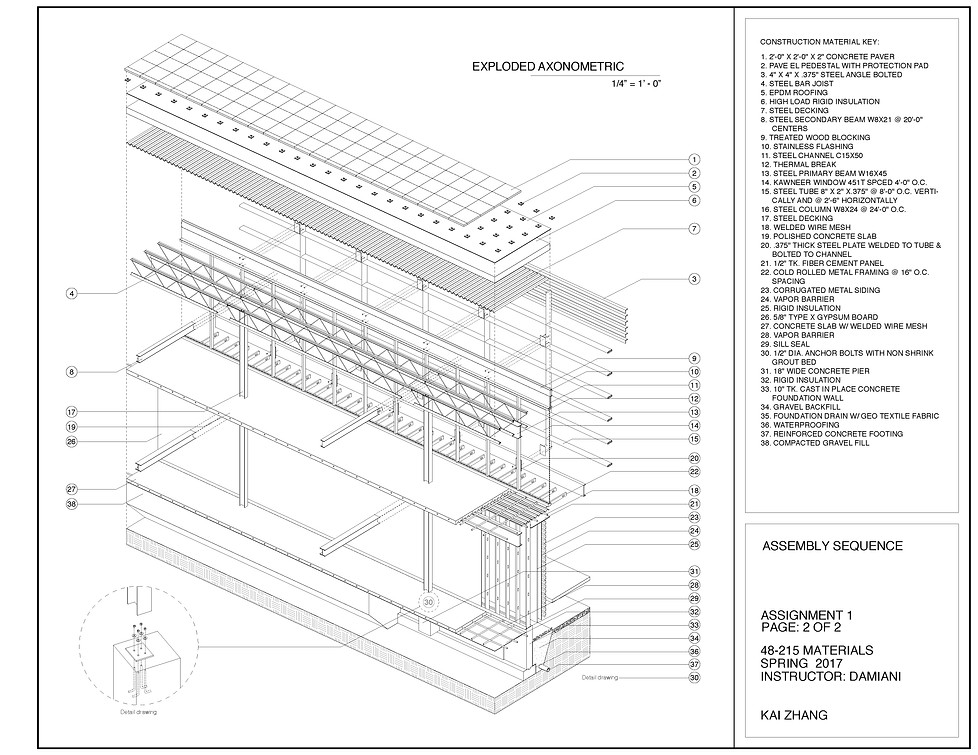

↑For this project, I've been exploring the assembling sequence of a steel-frame two-story building by modeling the construction from a given section drawing. Shown above are both the assembled and exploded axonometric drawings of the construction with line weights differentiating the material overlay and labels that shows the detail of various materials used.

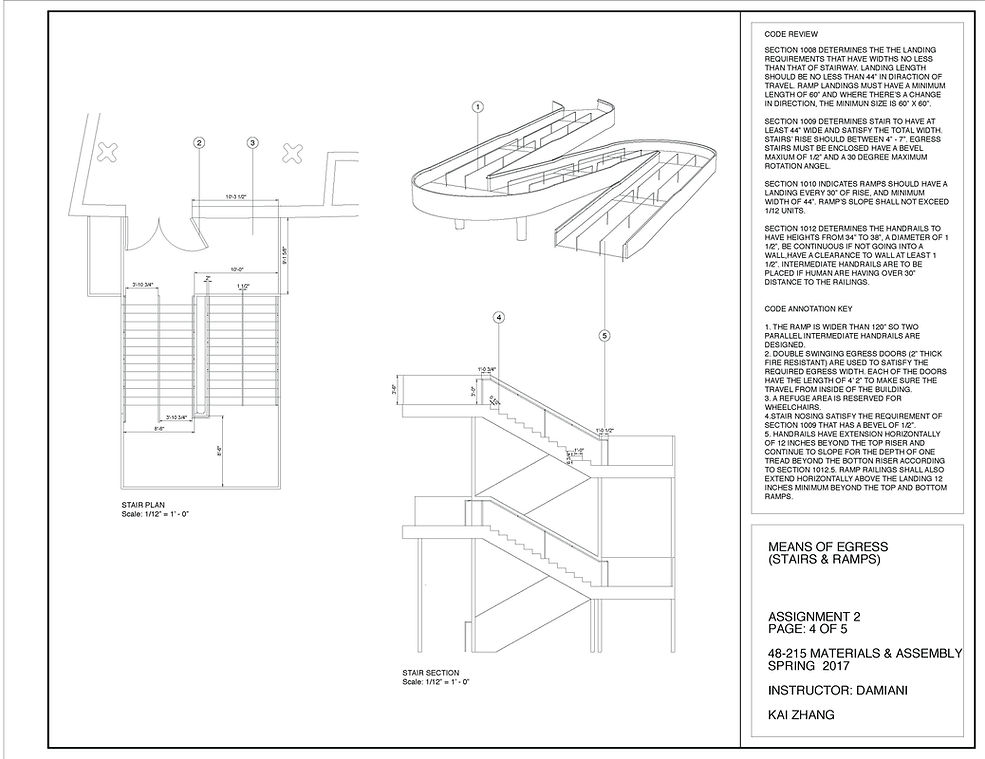

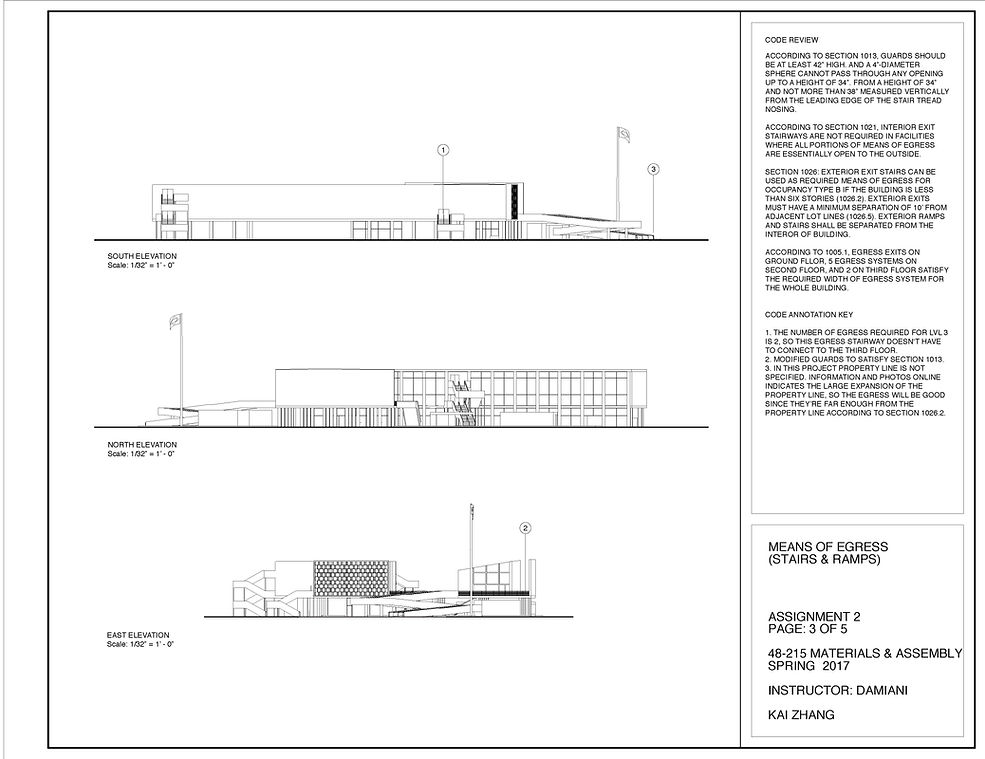

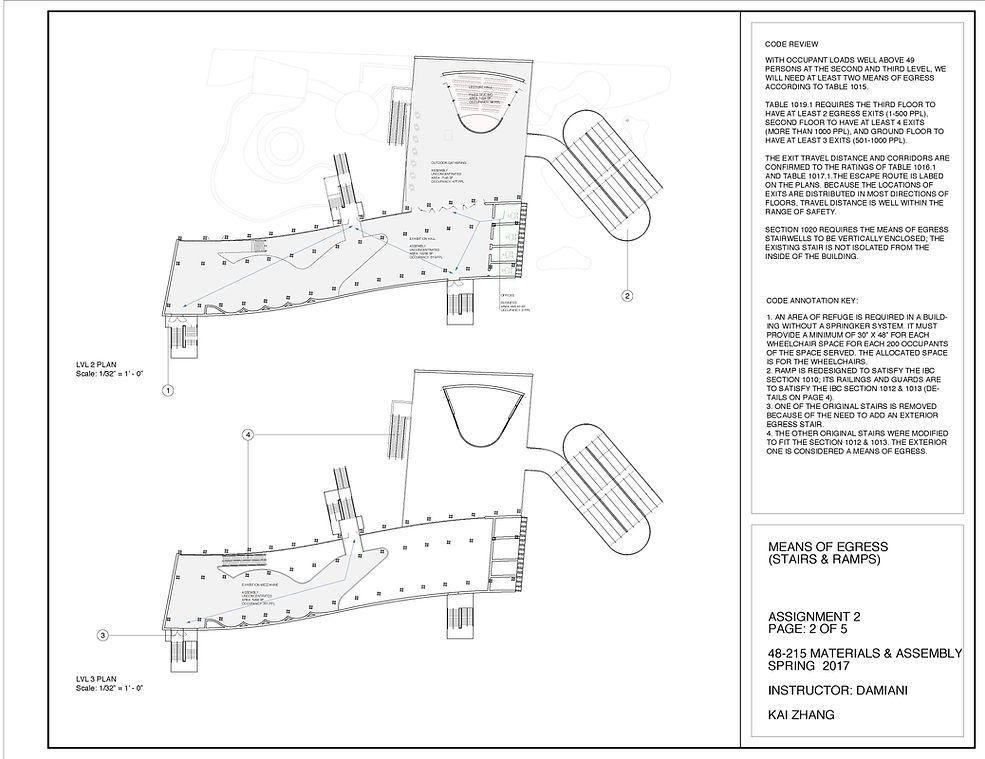

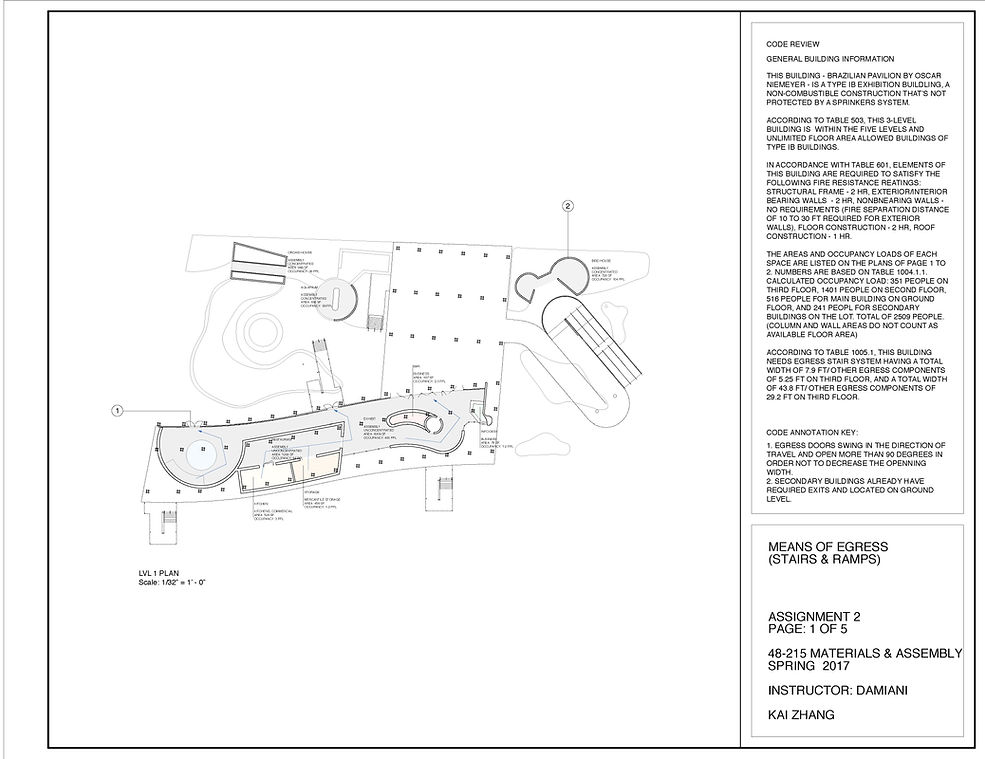

For this project, we're to redesign the means of egress for Bazilian Pavilion by Oscar Niemeyer. This IB type building has several non-code compliant elements. I redesigned the stairs and ramps and added a few new egress systems to make it IBC code compliant. Code reviews are on the right side of pages explaining all the details.
